What is a Directory Server?

• A specialized database optimized for reading, browsing, and searching
• Stores hierarchical data (tree structure) rather than relational tables
• Designed for high read performance, low write frequency
• Primary use: Identity management, authentication, and authorization

Directory Server vs Relational Database

Common Use Cases

LDAP: Lightweight Directory Access Protocol

• Industry standard protocol for accessing directory services
• Operates over TCP/IP (port 389, or 636 for LDAPS)
• Defines how clients communicate with directory servers
• Supports authentication (bind), search, modify, and delete operations

Popular LDAP Implementations

• Microsoft Active Directory - Enterprise standard
• OpenLDAP - Open source, Linux-native
• Apache Directory Server - Java-based, portable
• 389 Directory Server - Red Hat sponsored

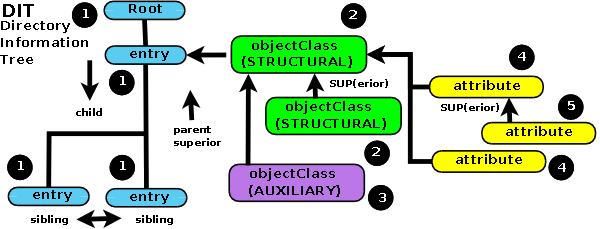

Directory Information Tree (DIT)

• Directories have a hierarchical structure called DIT
• Each node is an entry with attributes
• The tree starts from the root (suffix/base DN)

Distinguished Name (DN) Components

Distinguished Name (DN)

• The DN uniquely identifies an entry in the directory
• Contains the full path from the entry to the root
• Read from left to right (most specific to least specific)

cn=John Doe,ou=Engineering,ou=People,dc=example,dc=com

# Breaking it down:
cn=John Doe        → Common Name (the user)
ou=Engineering     → Organizational Unit (department)
ou=People          → Organizational Unit (category)
dc=example,dc=com  → Domain Component (root)

Relative Distinguished Name (RDN)

• The leftmost component of a DN
• Identifies the entry within its parent container
• Must be unique among siblings

# Full DN:
cn=John Doe,ou=Engineering,ou=People,dc=example,dc=com

# RDN:
cn=John Doe

# Parent DN:
ou=Engineering,ou=People,dc=example,dc=com

Object Classes

• Define the type of entry and its allowed/required attributes
• Entries can have multiple object classes
• Three types: Structural, Auxiliary, and Abstract

Common Object Classes

LDAP Attributes

• Attributes store the actual data for entries
• Each attribute has a type and one or more values
• Defined by the schema (required vs optional)

Common Attributes for inetOrgPerson

cn: John Doe                    # Common Name (required)
sn: Doe                         # Surname (required)
givenName: John                 # First name
mail: john.doe@example.com      # Email address
telephoneNumber: +1-555-1234    # Phone number
uid: jdoe                       # User ID
userPassword: {SSHA}base64...   # Hashed password
memberOf: cn=developers,ou=Groups,dc=example,dc=com

LDIF: LDAP Data Interchange Format

• Standard text format for representing LDAP entries
• Used for importing, exporting, and modifying data
• Human-readable, easy to edit

# Create an organizational unit
dn: ou=People,dc=example,dc=com
objectClass: organizationalUnit
ou: People
description: Company employees

# Create a user
dn: uid=jdoe,ou=People,dc=example,dc=com
objectClass: inetOrgPerson
objectClass: posixAccount
cn: John Doe
sn: Doe
givenName: John
uid: jdoe
mail: john.doe@example.com
uidNumber: 1001
gidNumber: 1001
homeDirectory: /home/jdoe

LDAP Search Filters

• Filters define which entries to return from a search
• Use prefix notation (operator comes first)
• Support wildcards (*) for partial matching

# Simple equality filter
(uid=jdoe)

# Presence filter (attribute exists)
(mail=*)

# Wildcard filter
(cn=John*)

# AND filter
(&(objectClass=person)(mail=*@example.com))

# OR filter
(|(department=Engineering)(department=IT))

# NOT filter
(!(accountDisabled=TRUE))

# Complex combined filter
(&(objectClass=inetOrgPerson)(|(department=IT)(department=Engineering))(!(accountDisabled=TRUE)))

LDAP Operations

Search Scope

• Defines how deep to search in the DIT

# Search with subtree scope
ldapsearch -x -b "dc=example,dc=com" -s sub "(objectClass=person)"

# Search only direct children
ldapsearch -x -b "ou=People,dc=example,dc=com" -s one "(objectClass=*)"

LDAP Authentication (Bind)

• Anonymous Bind: No credentials, limited access
• Simple Bind: DN + password (cleartext - use with TLS!)
• SASL Bind: Advanced mechanisms (Kerberos, etc.)

# Anonymous bind
ldapsearch -x -H ldap://localhost -b "dc=example,dc=com"

# Simple bind with credentials
ldapsearch -x -H ldap://localhost \
    -D "cn=admin,dc=example,dc=com" \
    -W \
    -b "dc=example,dc=com" \
    "(uid=jdoe)"

# Using LDAPS (secure)
ldapsearch -x -H ldaps://localhost:636 \
    -D "cn=admin,dc=example,dc=com" \
    -W \
    -b "dc=example,dc=com"

LDAP Security Best Practices

Password Storage

• Always store hashed passwords: {SSHA}, {PBKDF2}
• Enable password policies (complexity, expiration)

Microsoft Active Directory

• Enterprise directory service built on LDAP
• Integrates with Windows domain authentication
• Additional features: Group Policy, Kerberos, DNS integration

AD-Specific Attributes

# Active Directory user attributes
sAMAccountName: jdoe           # Pre-Windows 2000 logon
userPrincipalName: jdoe@corp.example.com
distinguishedName: CN=John Doe,OU=Users,DC=corp,DC=example,DC=com
memberOf: CN=Developers,OU=Groups,DC=corp,DC=example,DC=com
objectGUID: {unique-guid-here}
objectSid: S-1-5-21-...

LDAP Integration with Java

// Using Spring LDAP
@Configuration
public class LdapConfig {
    @Bean
    public LdapContextSource contextSource() {
        LdapContextSource ctx = new LdapContextSource();
        ctx.setUrl("ldap://localhost:389");
        ctx.setBase("dc=example,dc=com");
        ctx.setUserDn("cn=admin,dc=example,dc=com");
        ctx.setPassword("secret");
        return ctx;
    }

    @Bean
    public LdapTemplate ldapTemplate(LdapContextSource ctx) {
        return new LdapTemplate(ctx);
    }
}

// Searching for users
@Service
public class UserService {
    @Autowired
    private LdapTemplate ldapTemplate;

    public List<String> findAllUsernames() {
        return ldapTemplate.search(
            "ou=People",
            "(objectClass=inetOrgPerson)",
            (AttributesMapper<String>) attrs ->
                (String) attrs.get("uid").get()
        );
    }
}

Spring Security with LDAP

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http
            .authorizeHttpRequests(auth -> auth
                .requestMatchers("/admin/**").hasRole("ADMIN")
                .anyRequest().authenticated()
            )
            .formLogin(withDefaults());
        return http.build();
    }

    @Bean
    public EmbeddedLdapServerContextSourceFactoryBean contextSourceFactoryBean() {
        EmbeddedLdapServerContextSourceFactoryBean bean =
            EmbeddedLdapServerContextSourceFactoryBean.fromEmbeddedLdapServer();
        bean.setPort(8389);
        return bean;
    }

    @Bean
    public AuthenticationManager authManager(BaseLdapPathContextSource ctx) {
        LdapBindAuthenticationManagerFactory factory =
            new LdapBindAuthenticationManagerFactory(ctx);
        factory.setUserDnPatterns("uid={0},ou=People");
        return factory.createAuthenticationManager();
    }
}

Setting Up Apache Directory Server

Option 1: Download Standalone

• Download from Apache Directory
• Extract and run bin/apacheds.sh or apacheds.bat

Option 2: Docker

# docker-compose.yml
services:
  apacheds:
    image: greggigon/apacheds
    restart: unless-stopped
    ports:
      - "10389:10389"
    volumes:
      - ./apacheDS/data:/data

# Start the container
docker-compose up -d

Apache Directory Studio

• GUI tool for managing LDAP directories
• Download from directory.apache.org/studio

Connection Settings

Command Line: ldapsearch

# List all entries under base DN
ldapsearch -x -H ldap://localhost:10389 \
    -D "uid=admin,ou=system" -W \
    -b "dc=example,dc=com" \
    "(objectClass=*)"

# Find a specific user
ldapsearch -x -H ldap://localhost:10389 \
    -D "uid=admin,ou=system" -W \
    -b "ou=People,dc=example,dc=com" \
    "(uid=jdoe)" \
    cn mail telephoneNumber

# Find all users in a group
ldapsearch -x -H ldap://localhost:10389 \
    -D "uid=admin,ou=system" -W \
    -b "dc=example,dc=com" \
    "(&(objectClass=inetOrgPerson)(memberOf=cn=developers,ou=Groups,dc=example,dc=com))"

Command Line: ldapadd & ldapmodify

# Add entries from LDIF file
ldapadd -x -H ldap://localhost:10389 \
    -D "uid=admin,ou=system" -W \
    -f users.ldif

# Modify an entry
ldapmodify -x -H ldap://localhost:10389 \
    -D "uid=admin,ou=system" -W << EOF
dn: uid=jdoe,ou=People,dc=example,dc=com
changetype: modify
replace: telephoneNumber
telephoneNumber: +1-555-9999
-
add: title
title: Senior Developer
EOF

# Delete an entry
ldapdelete -x -H ldap://localhost:10389 \
    -D "uid=admin,ou=system" -W \
    "uid=jdoe,ou=People,dc=example,dc=com"

Managing Groups

# Create a group
dn: cn=developers,ou=Groups,dc=example,dc=com
objectClass: groupOfNames
cn: developers
description: Development team
member: uid=jdoe,ou=People,dc=example,dc=com
member: uid=asmith,ou=People,dc=example,dc=com

# Alternative: groupOfUniqueNames (prevents duplicate members)
dn: cn=admins,ou=Groups,dc=example,dc=com
objectClass: groupOfUniqueNames
cn: admins
uniqueMember: uid=admin,ou=People,dc=example,dc=com

Real-World Applications

• SSH Authentication: Centralized Linux user management with SSSD
• Web Applications: Spring Security LDAP authentication
• Email Systems: Address book and routing (Postfix, Dovecot)
• VPN Access: OpenVPN with LDAP backend
• WiFi Authentication: RADIUS with LDAP (FreeRADIUS)
• Git/DevOps: GitLab, Jenkins, SonarQube LDAP integration

Summary

• Directory servers are optimized for read-heavy identity data
• LDAP is the standard protocol for directory access
• Data is organized in a hierarchical tree (DIT)
• DN uniquely identifies each entry
• Object classes define entry types and attributes
• Filters enable powerful searches
• Always use TLS/SSL in production
